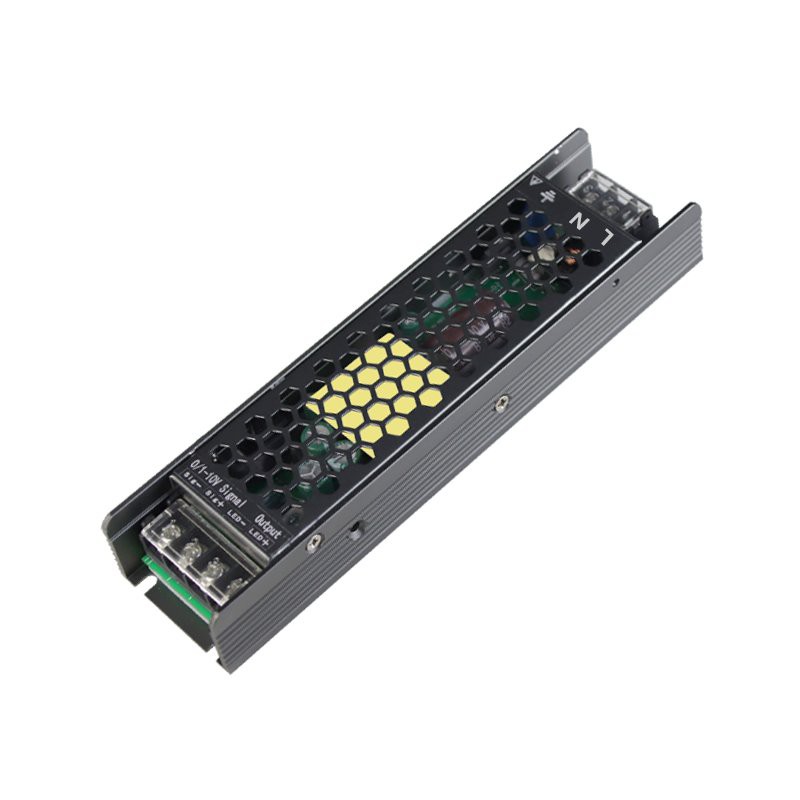

120V To 12V DC Converter For LED Lights
220V 120V to 12V DC Converter 5A 60W For LED Lights
- Product Introduction
property | Model |
T-60W-12V-3 | |
Output voltage | 12V±4% |
Output Current | 5A |
Ripple and noise | 100mVp-p |
Output power | 60W |
Dimming type | 0-10v,Triac,PWM,resistance |
Efficiency | 89% |
Input voltage | 100-130/190-260VAC |
Input frequency | 47-63Hz |
Input current | 1.26A/110V 0.63A/220V |
Cold start current | 0.85A/170V 0.55A/260V |
Leakage current | 〈0.2mA/260VAC |
Waterproof grade | IP20 |
Overload protection | 105%-110%,cut off the output,reset:automatic recovery |
Short circuit protection. | Have |
Over voltage protection | Have |
Temp coefficient | ±0.03%℃(0-5℃) |
Start,rise,hold time | 200ms,50ms,20ms |
Shoct resistance | 10-500Hz,2G 10min,/1 cycle，60 minutes，each axis |
Pressure | I/P-O/P:1.5KVAC,I/P-FG 1.5KVAC,O/P-FG:0.5KVAC |
Runing Temp,humidity | -20℃~+60℃，20%~90%RH |
Storage Temp，humidity | -30℃~+85℃，10%~95%RH |
Dimension | 195*49*30mm |
Weight | 0.33Kg |
Security Standard | CE FCC ROHS |
Description
This 120V To 12V DC Converter For LED Lights is a series of high-efficiency constant voltage output driver power supplies with integrated dimming function. It uses PWM technology to achieve high-quality dimming experience and will bring you a smooth use experience. It is compatible with a variety of LED arrays and many control options, which will make it widely used in LED intelligent lighting. In addition, the power supply can maintain good regulation during long-term use and reduce the regulation performance degradation caused by the lead voltage drop between the power supply and the load.
Features
The 120V To 12V DC Converter For LED Lights is equipped with safe circuit protection function, which will maintain stable use effect and protect your equipment and personal safety. At the same time, it can output higher voltage in a lower current range, or more current in a lower voltage range, so it can also be applied to applications requiring higher current. In addition, it will automatically run and save test data according to the steps you set, saving your time and improving your work efficiency.
Our service
1. Your inquiry related to our products will be replied within 24 hours.
2. We can do OEM/ODM,also customize special parameters of pwm dimmable 12v.
3. Payments can be T/T,Paypal,WU.Moneygram.
4. No MOQ limited for stock 12v 5 amp power supply.Welcome to your trial order to test our quality.
5. Quick delivery time,2-3 days for products in stock.15-20 days for mass production.
6. Best solution is available to your project design and request.
If not clear,please feel free to contact us for more info.
