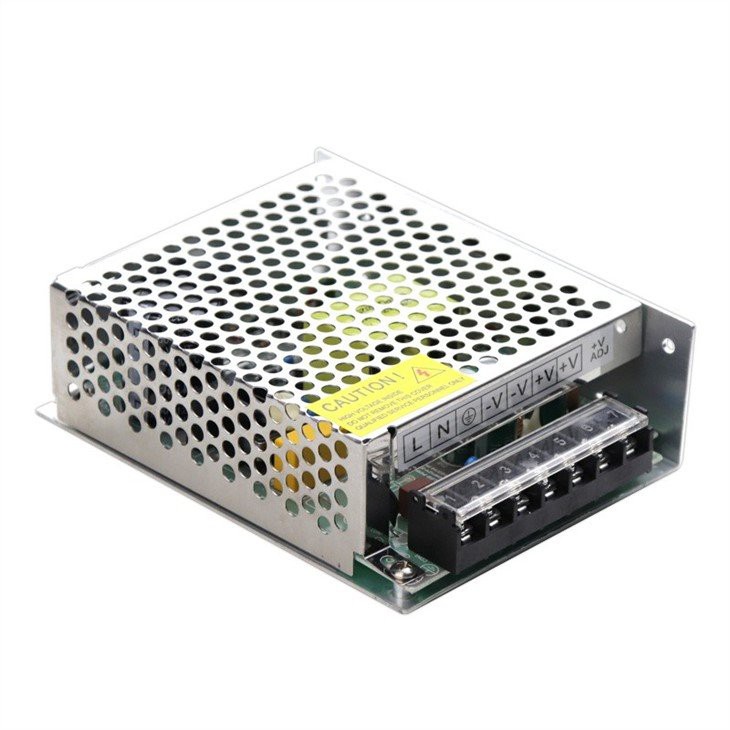

Switching-Mode Power Supply 12V 6A
The Common mode Choke is often used to filter common mode electromagnetic interference signals in 12V 6A power supply.
- Product Introduction
Description
This Switching-Mode Power Supply 12V 6A is a high-quality general-purpose switching power supply module, widely used in industrial automation, LED display and other applications. It can operate in the input voltage range of 90-264VAC and provide constant output of 12V and current up to 6A. And it contains various magnetic components that can charge the battery of 12V lead-acid battery with constant voltage and current.
Features
Our high quality Switching-Mode Power Supply 12V 6A is anti-interference and has a very stable working condition as well as efficient operation. It also provides surge protection for shortage, overload and overvoltage of smart devices to prevent burning out the devices during power supply. In addition it is equipped with a switch and has been tested for full load aging, which will provide you with a safe using experience.
Specification
property | Model |
P-72W-12V | |
Output voltage | 12V±5% |
Output Current | 6A |
Ripple and noise | 110mVp-p |
Output power | 72W |
Efficiency | 87% |
Input voltage | 90-264VAC |
Input frequency | 47-63Hz |
Input current | 0.9A/110V 0.45A/220V |
Cold start current | 0.6A/170V 0.3A/260V |
Leakage current | <0.5mA/260VAC |
Waterproof grade | IP20 |
Overload protection | 105%-110%,cut off the output,reset:automatic recovery |
Short circuit protection. | Have |
Over voltage protection | Have |
Temp coefficient | ±0.03%℃(0-5℃) |
Start,rise,hold time | 200ms,50ms,20ms |
Shoct resistance | 10-500Hz,2G 10min,/1 cycle，60 minutes，each axis |
Pressure | I/P-O/P:1.5KVAC,I/P-FG 1.5KVAC,O/P-FG:0.5KVAC |
Runing Temp,humidity | -20℃~+60℃，20%~90%RH |
Storage Temp，humidity | -30℃~+85℃，10%~95%RH |
Dimension | 159*98*35mm |
Weight | 0.37Kg |
Security Standard | CE FCC ROHS |
